Curtain module KTE4HPC

New
4-way universal curtain driver
● Implement actions such as opening/closing the motor load through the KNX protocol
● Using KNX bus for power supply
● Need DC24V auxiliary power supply for power supply
● 4 independent output channels
● With status feedback function for opening/closing
● Equipped with position control and status feedback functions
● The interval between opening and closing curtains can be set to maximize the protection of the curtain motor
● With scene functionality, each channel supports up to 8 sets of scene definitions
● Each circuit can be individually set with relevant parameters
● Manually control the opening/closing/stopping of each circuit
● Each circuit has an independent status display
● Supports strong current motors and dry contact motors

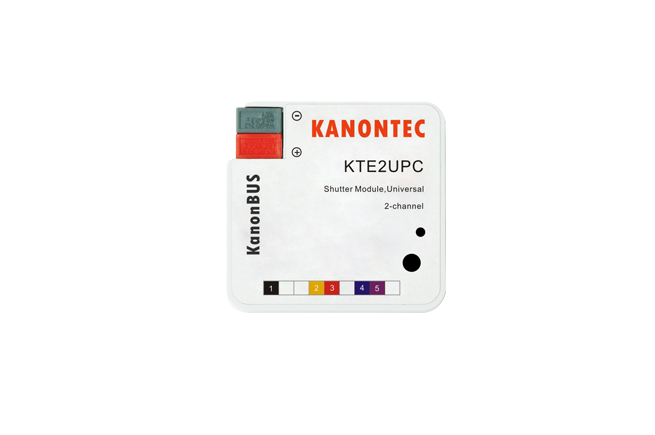

Curtain module KTE2UPC

New
2-way curtain driver
● 2-way curtain driver, dedicated dry contact input motor
● Suitable for passive dry contact curtain motor drive
● Can achieve curtain opening/closing/stopping, with status feedback function
● Dual channel design, suitable for most applications of gauze curtains and fabric curtains
● The interval between opening and closing curtains can be set to maximize the protection of the curtain motor
● The curtain travel opening time can be set with scene function, and each channel supports up to 8 sets of scene definitions
● With centralized control function and compact size, it can be embedded and installed in the 80/86 bottom box or the curtain box next to the curtains
