• KNX switch module KTE110/210/310MS

    1/2/3 concealed opening and closing modules
    ● Embedded input/output small module, 4 DI inputs, 4 DO outputs, 1-3 10A relay outputs
    ● Input port for light control: on/off/dimming
    ● Input port for curtain control: run/stop
    ● Input port can send numerical values: scene call/brightness value/temperature value/illuminance value

  • KNX Switch module KTE04R-10K KTE04R-16K

    4-way 10A switch driver/4-way 16A switch driver
    ● Electronic button switch driver
    ● Having scene functionality
    ● Each circuit has an independent status display and individual parameter settings
    ● After the KNX bus is powered off, manual control can still be performed
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control
    ● 24V auxiliary power supply required

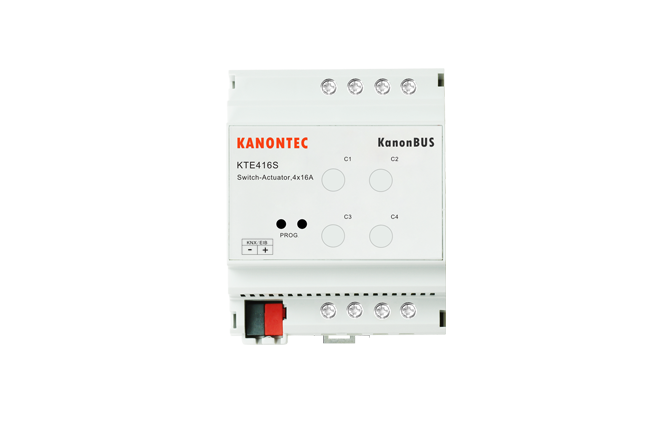

  • KNX switch module KTE04R-16S

    4-way 16A switch driver
    ● Mechanical toggle switch driver, 4-way 16A
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed with scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX switch module KTE04R-20S

    4-way 20A switch driver
    ● Mechanical toggle switch driver, 4-way 20A
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed
    ● Having scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX switch module KTE04R-20SA

    4-way 20A switch driver
    With current detection function
    ● Mechanical toggle switch driver, 4-way 20A
    ● Each circuit can detect the actual current magnitude
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed
    ● Having scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX Switch module KTE08R-10K KTE08R-16K

    8-way 10A switch driver/8-way 16A switch driver
    ● Electronic button switch driver
    ● Having scene functionality
    ● Each circuit has an independent status display and individual parameter settings
    ● After the KNX bus is powered off, manual control can still be performed
    ● 24V auxiliary power supply required
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

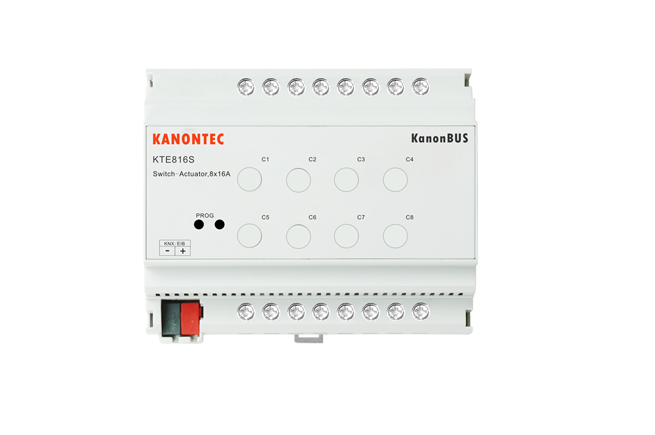

  • KNX switch module KTE08R-16S

    8-way 16A switch driver
    ● Mechanical toggle switch driver, 8-way 16A
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed with scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX switch module KTE08R-20S

    8-way 20A switch driver
    ● Mechanical toggle switch driver, 8-way 20A
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed
    ● Having scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX switch module KTE08R-20SA

    8-way 20A switch driver
    With current detection function
    ● Mechanical toggle switch driver, 8-way 20A
    ● Each circuit can detect the actual current magnitude
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed
    ● Having scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX Switch module KTE12R-10K KTE12R-16K

    12-way 10A switch driver/12-way 16A switch driver
    ● Electronic button switch driver
    ● Having scene functionality
    ● Each circuit has an independent status display and individual parameter settings
    ● After the KNX bus is powered off, manual control can still be performed
    ● 24V auxiliary power supply required
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX switch module KTE12R-16S

    12-way 16A switch driver
    ● Mechanical toggle switch driver, 12-way 16A
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed with scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX switch module KTE12R-20S

    12-way 20A switch driver
    ● Mechanical toggle switch driver, 12-way 20A
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed
    ● Having scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control

  • KNX switch module KTE12R-20SA

    12-way 20A switch driver
    With current detection function
    ● Mechanical toggle switch driver, 12-way 20A
    ● Each circuit can detect the actual current magnitude
    ● After a power outage or malfunction on the KNX bus, it can still maintain its current state
    ● After the KNX bus is powered off, manual control can still be performed
    ● Having scene functionality
    ● Can be applied to lighting, underfloor heating (open and closed), and dry contact signal control
