KNX DALI Gateway
● Single channel, supports 64 DALI ballasts, 16 groups, supports RGB/RGBW
● Supports DALI2.0 and DT8, with bus short circuit detection function, capable of detecting faults in ballasts and lighting fixtures
● The corresponding group address relationship has been integrated and can be used without assigning a group address
● 24V auxiliary power supply required

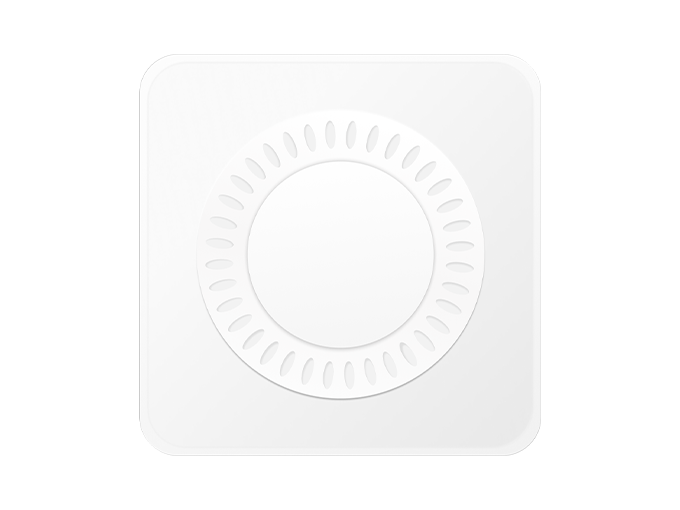

TUYA Graffiti Ecological Gateway
● With multiple connection methods, it can link the wireless system of graffiti with all wired systems, achieving seamless integration of wired and wireless
● To be used in conjunction with graffiti wireless access points
● Need to be used in conjunction with graffiti wireless access points
Apple Homekit Apple Ecological Gateway
● Apple HomeKit Apple Bridge, certified by Apple's official HomeKit and MFi
● One 485 interface, one 232 interface, one reusable network interface, or one KNX interface can be selected, with 4 interfaces to choose from
● 9-30V auxiliary power supply required
KNX APP Gateway
● Visual APP gateway, supporting Android and Apple systems, can be remotely controlled using WeChat mini programs
● Logic control, voice control, remote control, visualization app, supporting KNX IP Router and P2P mode
● Support control of lighting, underfloor heating, air conditioning, audio and video, backend timing, strategies and various logics, IP camera monitoring and video retrieval
● 9-30V auxiliary power supply required
KNX TCP Server Gateway
● TCP gateway, integrated with third-party software as an IP data interface
● Supports KNX IP Router and P2P mode
● 9-30V auxiliary power supply required
KNX timing/logical gateway
● Logical gateway, supporting backend timing, strategy, and various logical functions
● Supports KNX IP Router and P2P mode
● 9-30V auxiliary power supply required
Serial server gateway RS232 version
● Serial server gateway RS232 version, supports serial port transparent transmission, does not support Modbus
● 1 232 interface, logic control, can be used for user-defined bidirectional serial port code or KTS serial port transparent protocol
● Unrestricted number and byte length of serial port codes
● 9-30V auxiliary power supply required
DMX gateway
● DMA gateway, 1xDMX512 interface, supports 255 channel switches and dimming
● Supports 6 scenes, with a maximum of 64 channels per scene. The scene transition time can be set accordingly
● 24V auxiliary power supply required
KNX infrared gateway
● Infrared gateway, 4 IR transmission channels+1 IR learning channel
● Each channel supports a maximum of 100 infrared commands and supports the full frequency range of 20kHz~75kHz
● Can use ETS or RS485 interface to learn and transmit infrared signals
● With scene functionality, it enables one click simultaneous sending of different infrared commands to different channels
Small KNX/485 gateway
● RS485 to KNX small serial gateway, supporting 46 instructions
● The baud rate setting range for serial port data is 1200bps~115200 bps · The frame length of serial port data can be set
● The serial data frame can be set to use the same frame header and frame footer (2 bytes each), so that the length of a single data frame can reach 12 bytes
● Supports hexadecimal and ASCII code commands (requires conversion to decimal)
KNX Project Management Module
● KNX project management module, can trigger blocking instructions after timeout
● Equipped with automatic storage and memory function, the device will not affect the current timing function after power is restored
● Timing can be done in seconds/minutes/hours/days, with a minimum of 1 second and a maximum of 255 days
